Details Powerful hand extruder

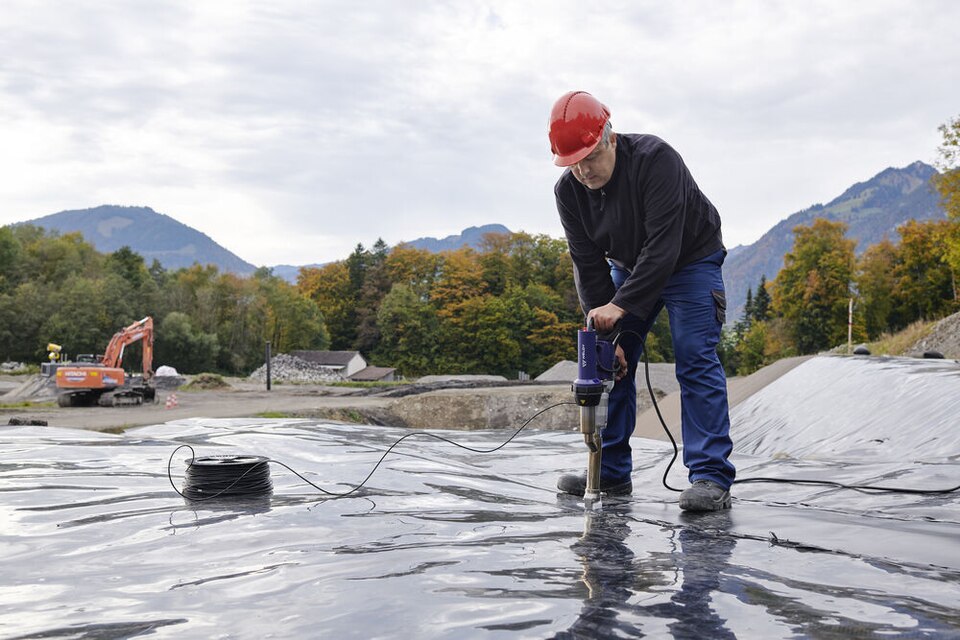

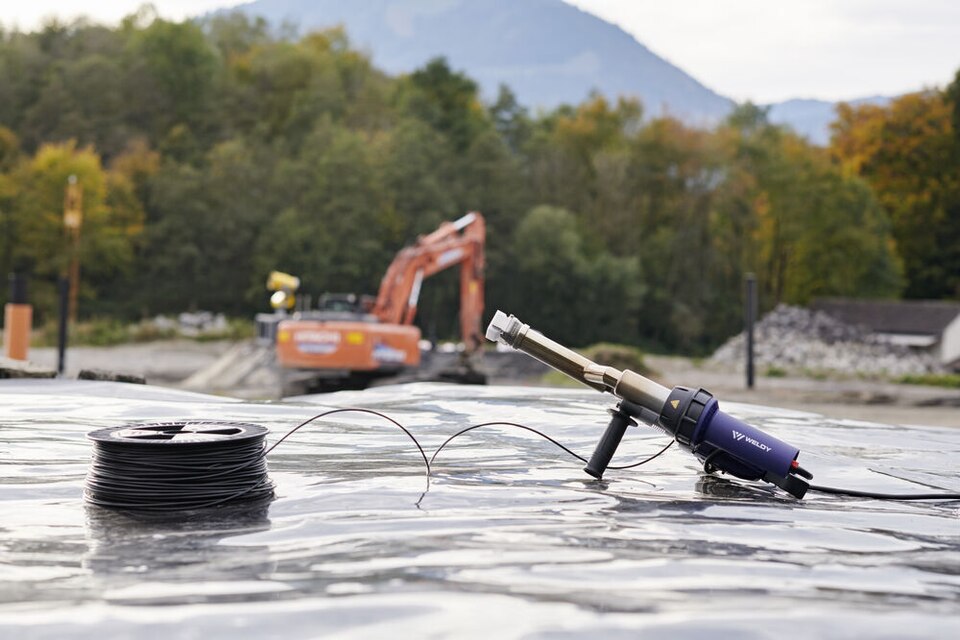

Weldy’s booster EX3 hand extruder is built longer than the booster EX2 extruder and has a higher output of 3.4 kg/hr/7.5 lbs/hr. Therefore, the booster EX3 hand extruder is well-suited in civil engineering for welding thermoplastics PE and PP. This powerful Weldy hand extruder is also used in agriculture, construction and for welding membranes.

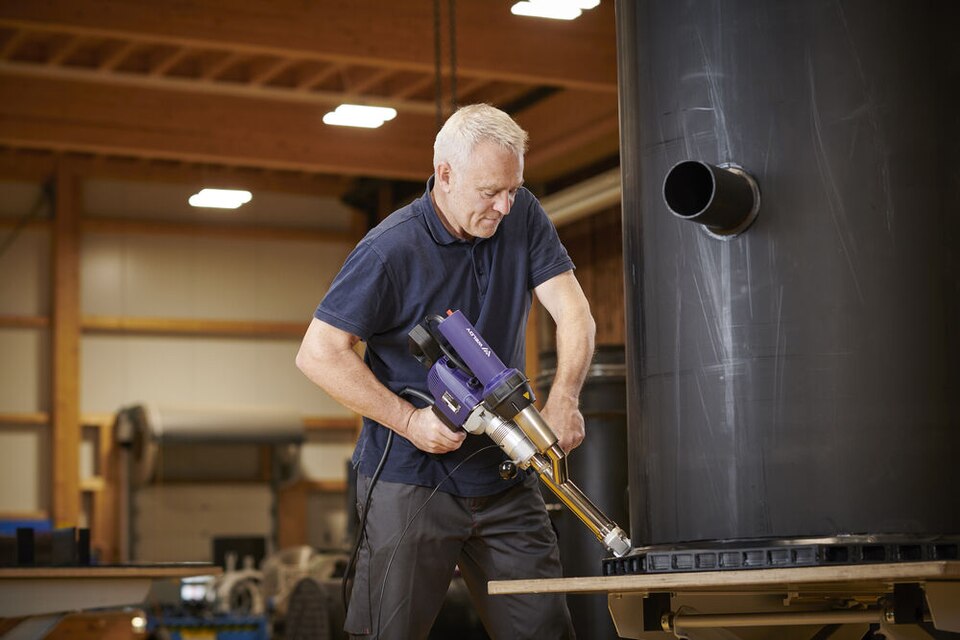

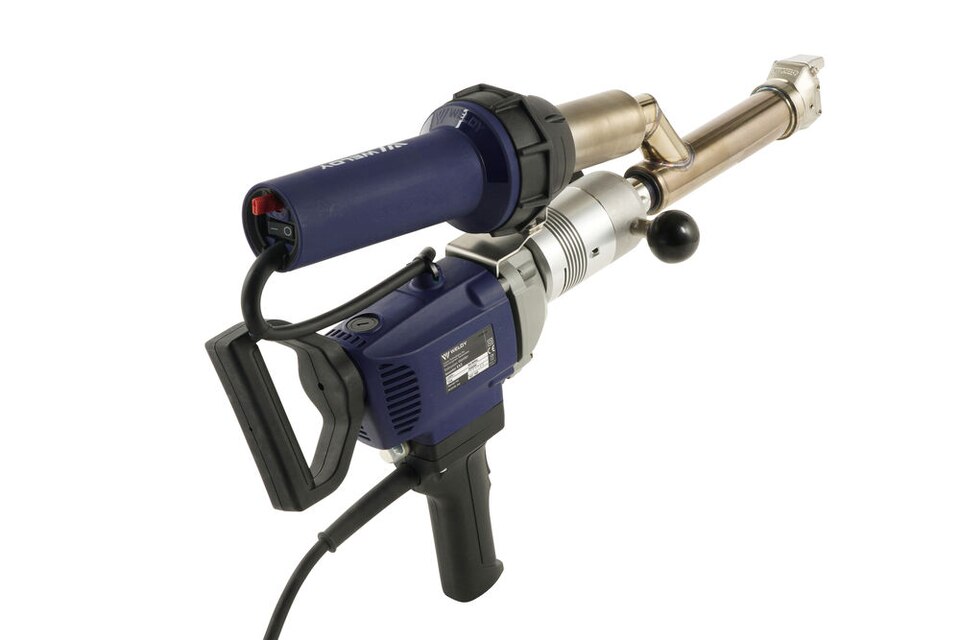

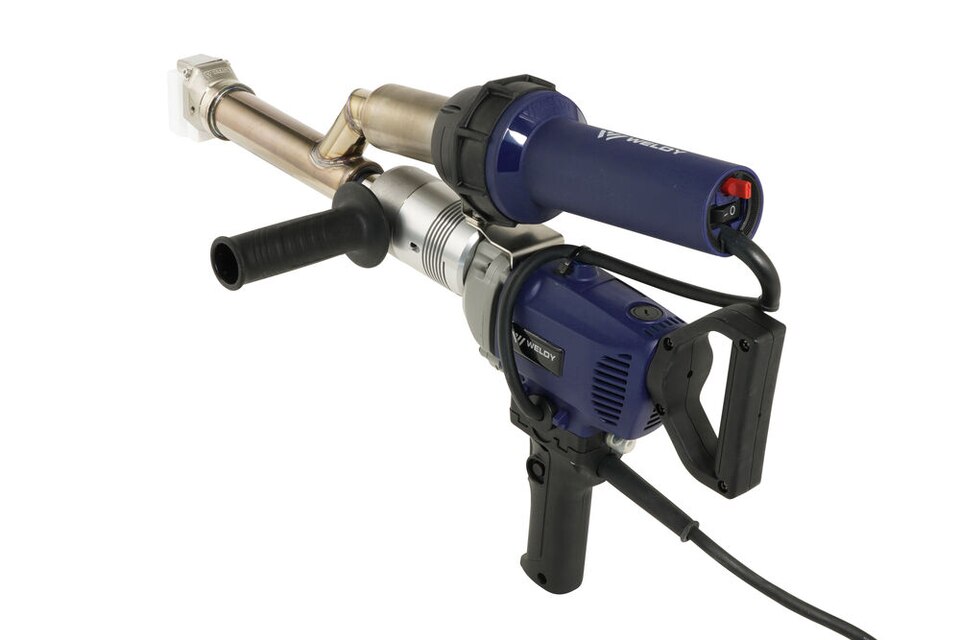

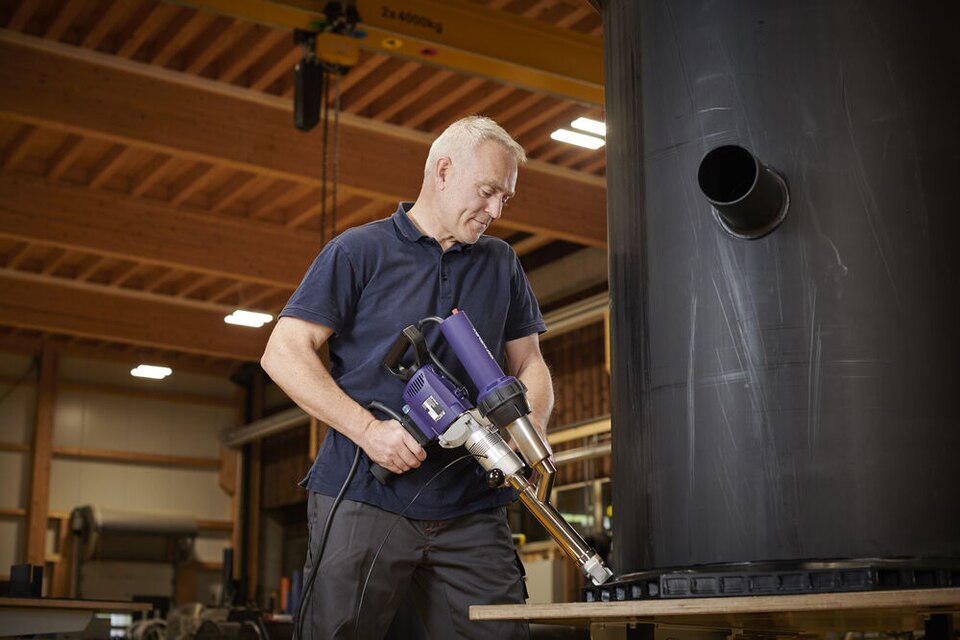

With the booster EX3, the welding rod can be drawn in from both the left and right sides, which facilitates plastic welding work in tight spaces. The booster EX3 extrusion welder has a total of three handles: a handle with lockable drive button, a rotating push handle at the rear of the extruder and a side handle that can be mounted on the left or right as required. This handle facilitates precise guidance of the booster EX3 extrusion welder. The longer design and variable handle positions of this welder allow operators to maintain good posture while working and have good control of the extruder during plastic welding. The Weldy booster EX3 extrusion welder is used for high-quality processing of polyolefins and thermoplastics PE and PP. In contrast to the short and compact booster EX2, the booster EX3 with its maximum output of 3.4 kg/h/7.5 lbs/h is ideal for work that requires a lot of standing. The hand extruder booster EX3 is also successfully used in tank and container construction for sheet thicknesses up to 15 mm/0.6 inches. If thicker welds are required, a larger extruder is more suitable. The durable transport case included in the scope of delivery ensures that the hand extruder and accessories are safe and free of dust/debris.
Technical Data
| Specification | Value |
|---|---|
| Article | 146.917 |
| Voltage | 230 V |
| Frequency | 50/60 Hz |
| Power | 3000 W |
| Welding rod | ø 3–4 mm / 0.12–0.16 in |
| Material output ø 3 mm | 2.5 kg/h (Measured with PE – performance can vary) |
| Material output ø 4 mm | 3.6 kg/h (Measured with PE – performance can vary) |
| Welding materials | HDPE; LDPE; LLDPE; PP |
| Weldable sheet/membrane thickness | 15 – 25 mm (Recommended for specified thickness) |
| Air guide | Internal |
| Screw heating | Air heated |
| Air temperature control | Open loop |
| LQS | No (Leister Quality System data recording) |
| Display | No |
| Brushless blower motor | No |
| Brushless drive motor | No |
| LED Working light | No |
| Length | 630 mm |
| Width | 140 mm |
| Height | 380 mm |
| Weight | 6.9 kg (without power cord) |
| Power cable length | 3 m |
| Plug | EU, 2 poles, 16A |
| Noise emission level | 74 dB (A) |
| Approvals | CE; UKCA |
| Protection class | II |
| Country of origin | P.R. China |
Highlights Low-cost Hand Extruder
- Ideal for welds that require standing
- Locking key for convenient, continuous welding
- High-quality barrel extruder
- Easy-to-change welding shoes
